POMS MC Production Guide

Introduction

This guide describes how to run Monte Carlo (MC) production using POMS. Jobs fall into two categories:

Base-template jobs

  • Definition: Process a single input file to produce one output via a standard FCL template.
  • Driver: Production/Scripts/run_RecoEntuple.py (consider renaming to run_DigiReco.py).
  • Output storage: Write results to persistent storage to avoid many small tape files; later concatenate before archiving.
  • Examples: digitization, reconstruction, event-ntupling.
  • Example campaign: POMS Campaign 24194

Stage Parameter Overrides

Param_Overrides = [
   ['-Oglobal.dataset=',    '%(dataset)s'],
   ['--stage=',             'digireco_digi_list'],
   ['-Oglobal.release_v_o=','au'],
   ['-Oglobal.dbversion=',  'v1_3'],
   ['-Oglobal.fcl=',        'Production/JobConfig/digitize/OnSpill.fcl'],
   ['-Oglobal.nevent=',     '-1'],
]
  • %(dataset)s – placeholder for POMS slice names (e.g. dts.sophie.ensembleMDS2a.MDC2020at.art_slice_72935_stage_5)
  • digireco_digi_list – stage definition from …/poms_includes/mdc2020ar.cfg
  • Remaining overrides feed into run_RecoEntuple.py

Split Types

There are multiple split types in POMS, but we've been most using drainingn and nfiles

  • draining(n) – pulls at most n files per iteration and tracks delivered files via snapshots.

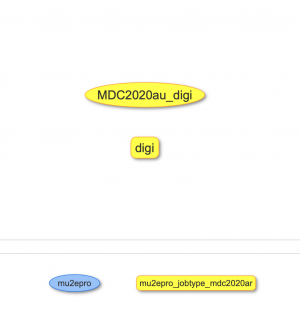

To modify campaign, the preferred option is to use GUI editor on the main page, which will bring you the below:


Then double click on digi cell to modify campaign parameters

Extended-template jobs

  • Definition: Require unique, job-specific parameters and configurations.
  • Examples: stage-1 processing, stage-2 resampling, mixing.
  • Example campaign: POMS Campaign 24200

Primaries

We resample primary from particle stops. Generate resampler par file with gen_Resampler.sh

Example:

gen_Resampler.sh --json /exp/mu2e/app/users/oksuzian/muse_080224/Production/data/primary_dio.json --json_index 0

Sample JSON entry:

   {
       "dsconf": "MDC2020at",
       "desc": "DIOtail95",
       "fcl": "Production/JobConfig/primary/DIOtail.fcl",
       "resampler_name": "TargetStopResampler",
       "resampler_data": "sim.mu2e.MuminusStopsCat.MDC2020p.art",
       "events": 5000,
       "njobs": 2000,
       "start_mom": 95,
       "end_mom": 1000,
       "run": 1202,
       "simjob_setup": "/cvmfs/mu2e.opensciencegrid.org/Musings/SimJob/MDC2020at/setup.sh"
   }

, and essentially sets the parameters for gen_Resampler.sh

Produces:

cnf.mu2e.DIOtail95.MDC2020at.0.tar
cnf.mu2e.DIOtail95.MDC2020at.fcl

fcl file above is intended for testing.

After the test, upload par file to disk:

gen_Resampler.sh --json Production/data/primary_dio.json --json_index 0 --pushout


json files are located in Production/data, and can be investigated as such

List all available primaries:

jq 'map(.desc)' data/resampler.json
[
 "RMCFlatGammaStops",
 "RMCFlatGammaResampling",
 "RMCIPAFlatGammaResampling",
 "RMCWireFlatGammaResampling",
 "RMCInternalEndpoint",
 "RMCExternalEndpoint",
 "RMCInternal",
 "RMCExternal",
 "DIOtail95",
 "IPAMuminusMichel",
 "CePlusEndpoint",
 "CeEndpoint",
 "CePLeadingLog",
 "CeMLeadingLog",
 "RPCInternal",
 "RPCExternal"
]

Locate map index that corresponds to CeEndpoint:

jq 'map(.desc) | index("CeEndpoint")' data/resampler.json
11

Merging

Example:

gen_Merge.sh --json Production/data/merge_filter.json --json_index 4

json file index 4 looks like:

   {
       "desc": "ensembleMDS1eOnSpillTriggered-noMC",
       "dsconf": "MDC2020au_best_v1_3",
       "append": ["physics.trigger_paths: []", "outputs.strip.fileName: \"dig.owner.dsdesc.dsconf.seq.art\""],
       "extra_opts": "--override-output-description",
       "fcl": "Production/JobConfig/digitize/StripMC.fcl",
       "dataset": "dig.mu2e.ensembleMDS1eOnSpillTriggered.MDC2020aq_best_v1_3.art",
       "merge-factor": 1,
       "simjob_setup": "/cvmfs/mu2e.opensciencegrid.org/Musings/SimJob/MDC2020au/setup.sh"
   }

, and essentially sets the parameter for gen_Merge.sh

Produces:

cnf.mu2e.ensembleMDS1eOnSpillTriggered-noMC.MDC2020au_best_v1_3.0.tar
cnf.mu2e.ensembleMDS1eOnSpillTriggered-noMC.MDC2020au_best_v1_3.fcl

Upload with pushout:

gen_Merge.sh --json Production/data/merge_filter.json --json_index 4 --pushout

Index datasets

Extended-template job type run of the index datasets as such: $ samdes idx_map042425.txt Definition Name: idx_map042425.txt

 Definition Id: 208459
 Creation Date: 2025-04-25T15:58:50+00:00
      Username: oksuzian
         Group: mu2e
    Dimensions: dh.dataset etc.mu2e.index.000.txt and dh.sequencer < 0003892

The definitions are created from a list of par files like:

cnf.mu2e.MuonIPAStopSelector.MDC2020at.tar -1
cnf.mu2e.RMCInternal.MDC2020at.tar 2000
cnf.mu2e.RMCExternal.MDC2020at.tar 8000
cnf.mu2e.IPAMuminusMichel.MDC2020at.tar 2000
cnf.mu2e.CeMLeadingLog.MDC2020at.tar 2000
cnf.mu2e.CePLeadingLog.MDC2020at.tar 2000
cnf.mu2e.DIOtail95.MDC2020at.tar 2000

Where the first column are the parameter files definitions, and the second column are the number of jobs (-1 means the number of jobs can be extracted from the par file itself)

Then using the list above, we can create a definition:

gen_MergeMap.py /exp/mu2e/data/users/oksuzian/poms_map/map041025.txt

Scripts/run_JITfcl.py

This script drives extended-template job types of the index definitions. On the grid it:

  • Extracts the parameter filename and local index from the map, i.e. /exp/mu2e/data/users/oksuzian/poms_map/merged_map042425.txt
  • Download par file, and extracts fcl file
  • Runs and pushOut all the relevant output: art, root, log

Monitoring

These webpage are geneted by nightly cron jobs:

/exp/mu2e/app/home/mu2epro/cron/datasetMon/

Running jobs locally

Both drivers can run locally by providing proper variables like:

setup mu2egrid
export fname=etc.mu2e.index.000.0000000.txt
...whatever else the script complains about
